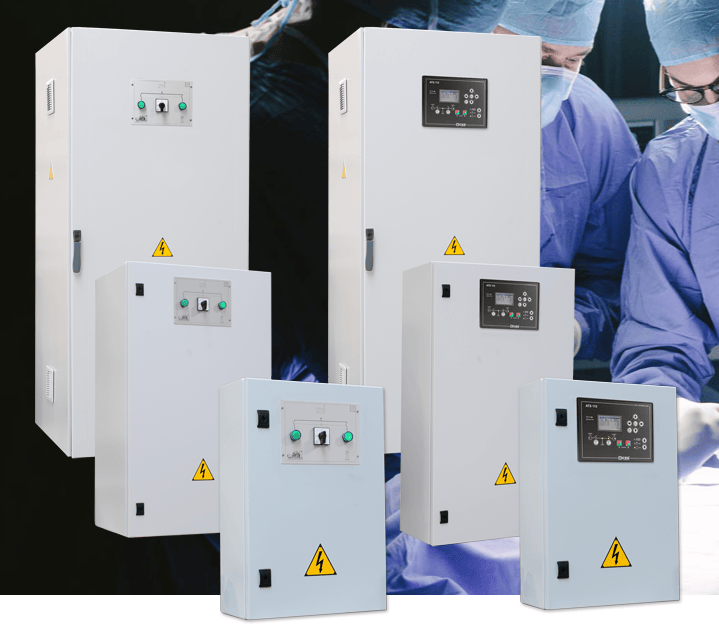

ATS Panel - Basic and Logicia

45amp - 4000amp

Made in ItalySices ATS control panel is designed for mains/genset transfer switch applications that involve a Genset usually equipped with an automatic control panel. The ATS control panel comprises all circuits, devices, and controls, which safely enables the switching between the Mains and the Genset, in order to supply the load in case of mains failure.

The ATS control panel is ISO 9001 Certified. The cabinetry is made of sheet metal subjected to a painting treatment using high resistance epoxy powder.

Logica Version

Automatic switching panel complete with microprocessor control board equipped with graphic display to show voltage, frequency, hours of operation and battery voltage of the generating set.

For the LOGICA ATS panel, the controller is available in two versions: ATS 115 and ATS 115Plus. Optionally, it is possible to add the current transformers to measure the current, the power and the power factor.

The “LOGICA version” is especially suitable for those case in which remote switching cannot be applied, for example in Caterpillar Generators, FG Wilson, Cummins, etc.



Basic Version

Switching panel with manual control , aimed with a 4 selection switch MAINS – AUTOMATIC 0 – GENSET and optical signal lamps to advise the load is supplied by the mains.
